Food Industry Fixed Gas Detector For CLO2 CO2 O2 To Sterilization And Preservation

Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: ATEX,CE,IECEX
Model Number: YT-98H-A/D
Minimum Order Quantity: 1 piece
Price: Negotiable
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, Credit Card
Supply Ability: 100 pieces/week
Detail Information
Model Number: YT-98H-A/D Detected Gas: CLO2 CO2 O2
Sensor Principle: Electrochemistry Measure Range: To Be Specified
Resolution: To Be Specified Install Method: Wall-mounted
Power Supply: 12-24V DC Net Weight: 3.4 KG
Product Size: 286*202*96mm Warranty: 12 Month
High Light:

Fixed Gas Detector For CLO2

,

CLO2 CO2 O2 Fixed Gas Detector


Product Description

Food Industry Fixed Gas Detector for CLO2 CO2 O2 to Sterilization and Preservation​





Product overview



The YT-98H-A/D, a member of the YT-98H-D/YT-98H-D-A series, is a fixed gas detector proficient in detecting 1-6 types of gases simultaneously and continuously. It boasts IECEx and ATEX certifications and incorporates a non-contact magnetic wand design, making it apt for installation and operation in hazardous areas. The detector accommodates 3-wire 4-20mA, HART, RS485 Modbus relay output, ensuring it is compatible with a majority of control systems. Moreover, it provides an optional wireless data transmission feature, enabling users to access real-time data remotely on devices such as laptops and mobile phones.

Product advantage

  • This device is capable of detecting up to 6 different types of gases simultaneously. This feature is especially beneficial in complex and multi-gas environments, eliminating the need for multiple installations and thereby saving time and effort.
  • It boasts a 2.4-inch industrial-grade high-definition color screen with a resolution of 320*240 and a broad viewing angle of 120 degrees.
  • Outfitted with a wireless module, the device can transmit data to the cloud platform, environmental protection bureaus, or other platforms. It also offers an SMS reminder function. The transmission signal is not distance-bound, enabling real-time viewing on mobile phones and computers. (This feature is optional)
  • The device is equipped with a comprehensive software automatic verification function and zero calibration function, ensuring more precise and dependable gas monitoring.
  • It generates a standard 4-20mA current signal, RS485 modbus signal, and one set of relay signal.
  • It comes with a standard infrared remote control, which can be utilized to remotely operate the detector and modify its settings.
  • The device incorporates a sound and light alarm function, which activates an alarm when the alarm point is reached. (This feature is optional)

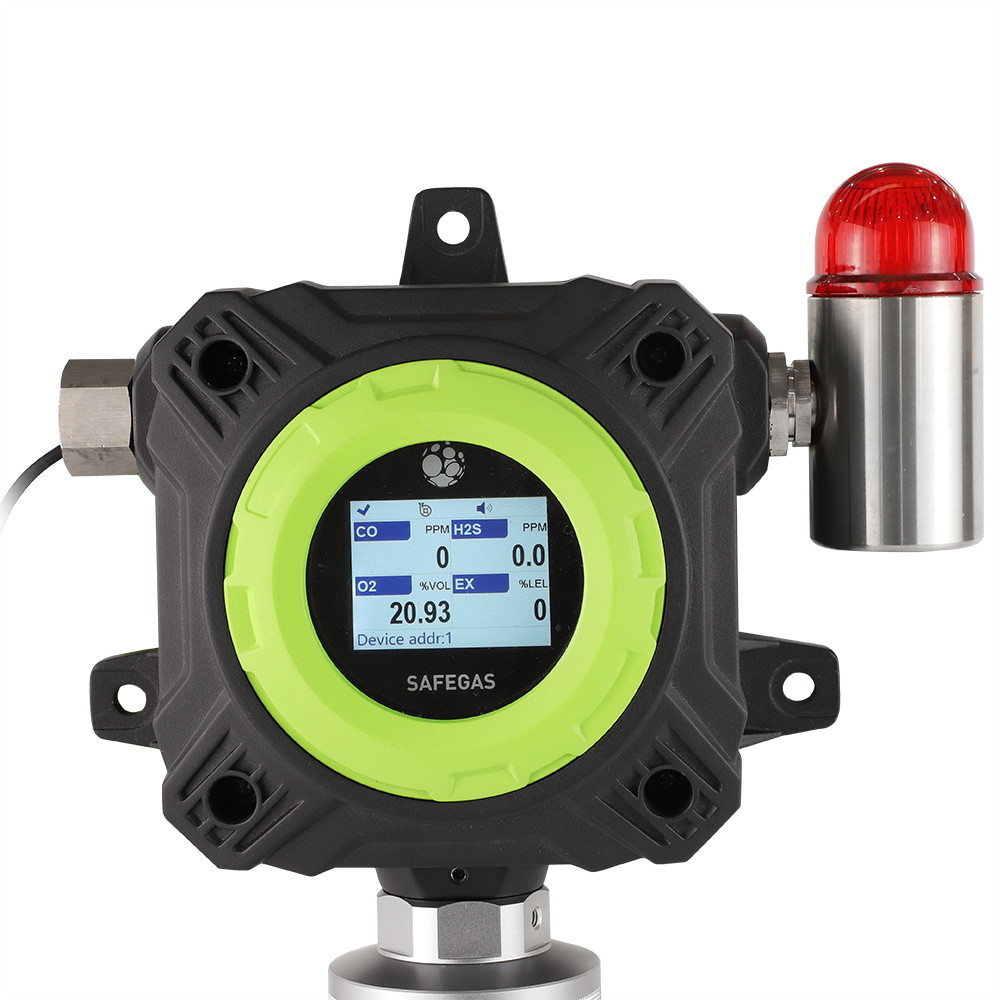

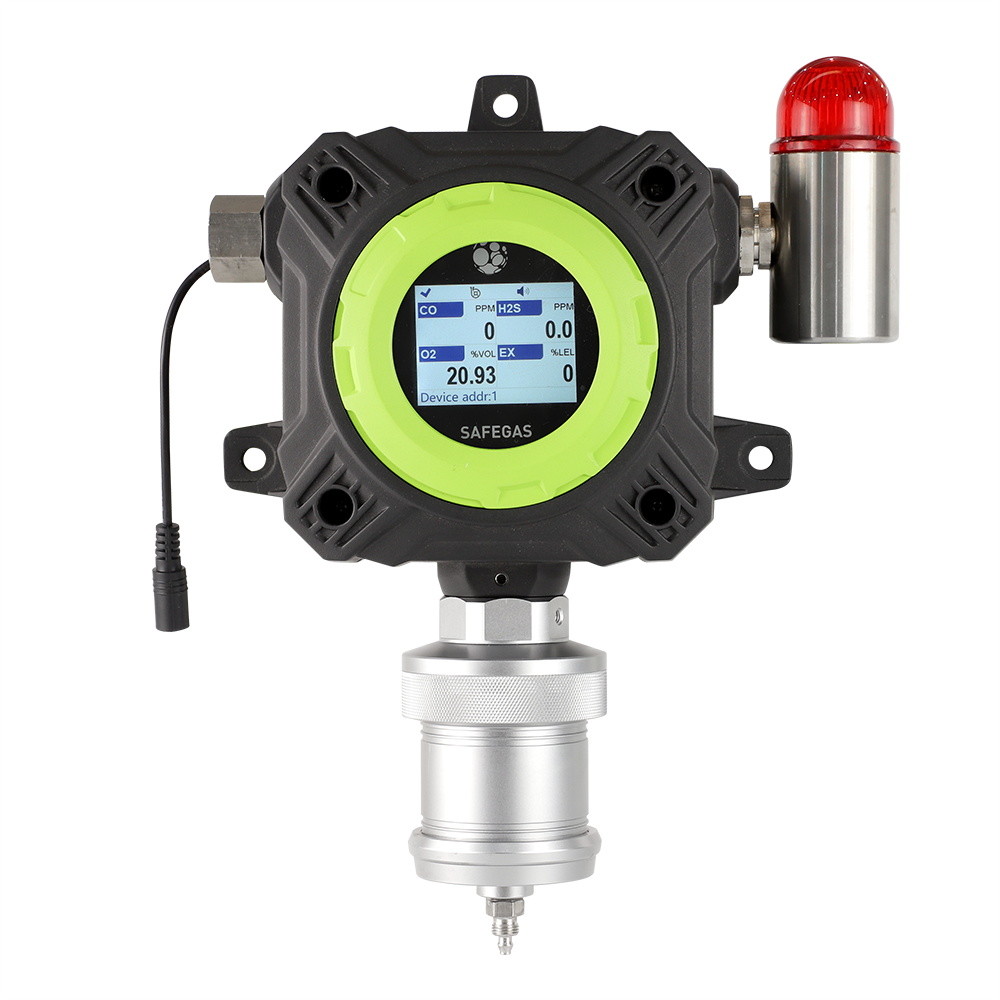

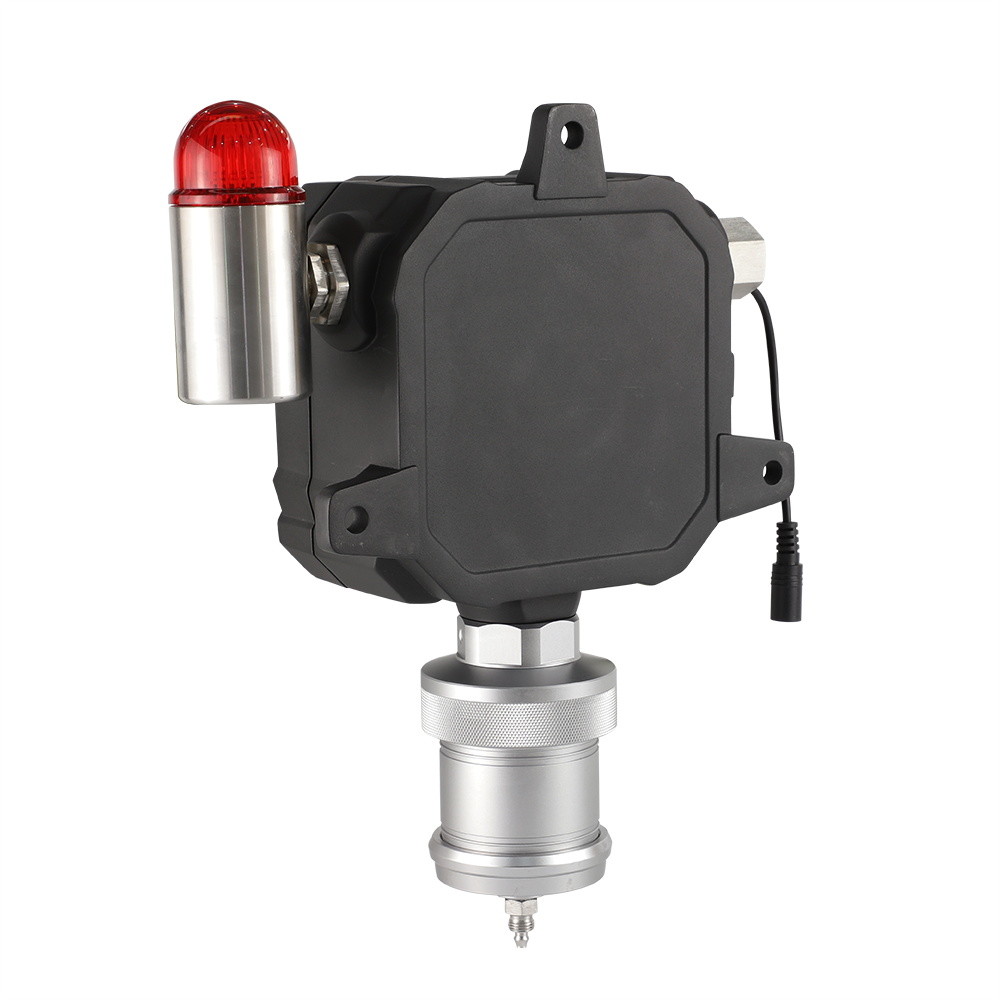

Product picture

Food Industry Fixed Gas Detector For CLO2 CO2 O2 To Sterilization And Preservation 0Food Industry Fixed Gas Detector For CLO2 CO2 O2 To Sterilization And Preservation 1

Specification



Gas detected CLO2 CO2 O2
Detection principle Electrochemistry
Install method Wall-mounte (according to the detected environment)
Measure range To be specified
Resolution To be specified
Precision ± 2-5% FS
Signal output 4-20mA, 0-5V, RS485, relay(optional)
Response time ≤10S Recovery time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(FS/year) Display
2.4 inch color display, resolution 320*240
Wireless output (optional):
Wireless transmission function, provide SMS Alert, can upload data to the platforms, and transmit signals without distance limitation(optional)
Unit ppm, mg/m³, %vol
Temperature -20 to 50°C Humidity 0-95%RH
Explosion-proof Ex db ⅡCT6 G6 Degree of protection IP66
Alarm Sound, light
Language:
Chinese / English
Dimensions
286*202*96mm
Weight 3.4kg



Our advantage



  1. We assure a response to all inquiries within a timeframe of 24 hours.
  2. We provide OEM services for swift delivery, with the ability to dispatch goods within just 3 days.
  3. We extend a one-year warranty and lifelong maintenance to all our esteemed customers.
  4. Our dedicated team is always ready to offer technical support, with our skilled engineers on standby to assist in resolving any issues that may arise.
  5. All our products undergo a comprehensive inspection before packaging and are accompanied by a certificate of conformity prior to shipment.
  6. As a manufacturer with our own production facility, we have been specializing in gas detection for nearly 16 years. We cordially invite you to visit our factory.
  7. All our sensors are imported from Europe, embodying top-tier brand sensors renowned for their quick response time and high precision.
