Model Number: | SKY3000-VOC | Sensor Principle: | PID |
---|---|---|---|
Measure Range: | 0-10ppm, 0-50ppm, 0-100ppm Etc. (Customized) | Resolution: | 0.001ppm, 0.01ppm, 0.1ppm, 1ppm (Customized) |
Response Time: | ≤30 Seconds (T90) | Precision: | ≤±2%F.S |
Working Hours: | More Than 15 Hours In Pumping Mode Continuously | Disaply: | LCD (160 X96) ,180° Rotate |
Language: | Chinese, English, Russian | Backlight: | Turned On Automatically When Alarming, The Backlight Time Can Be Manually Set |
High Light: | Portable VOC Gas Detector,PID Sensor VOC Gas Detector |

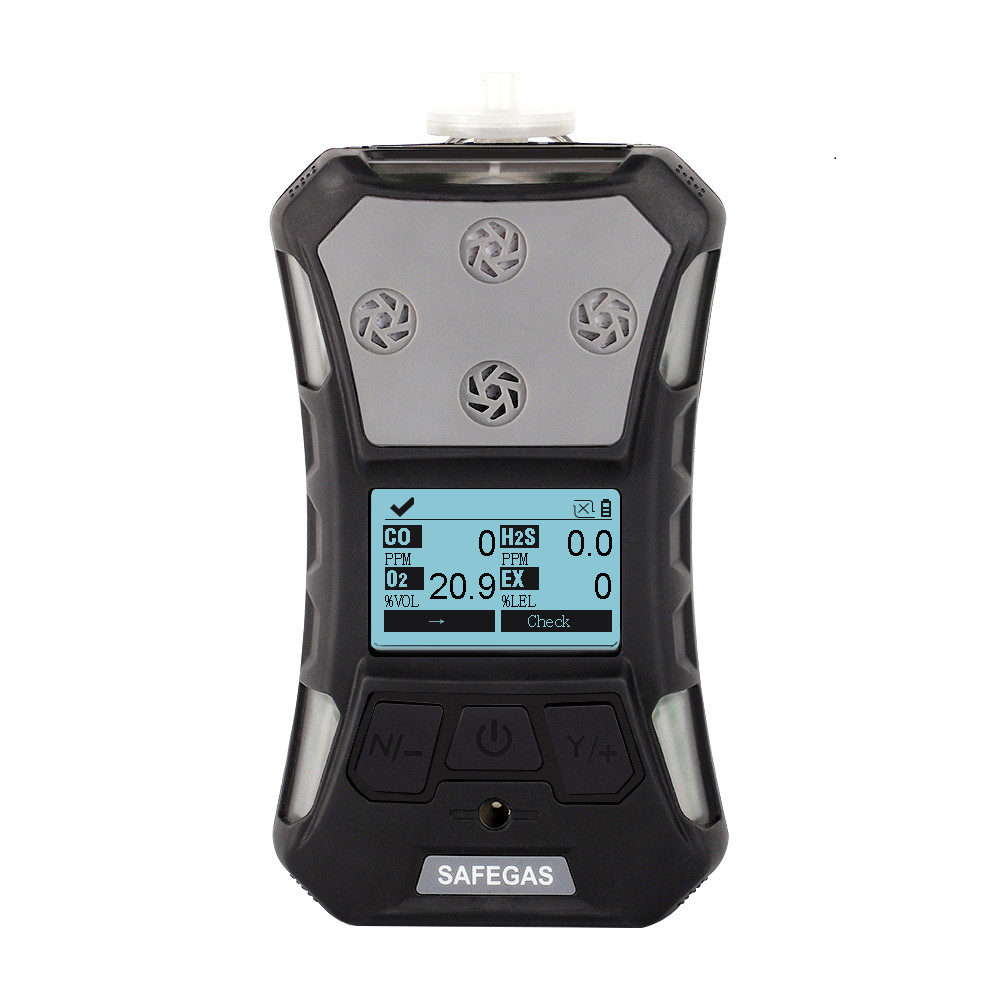

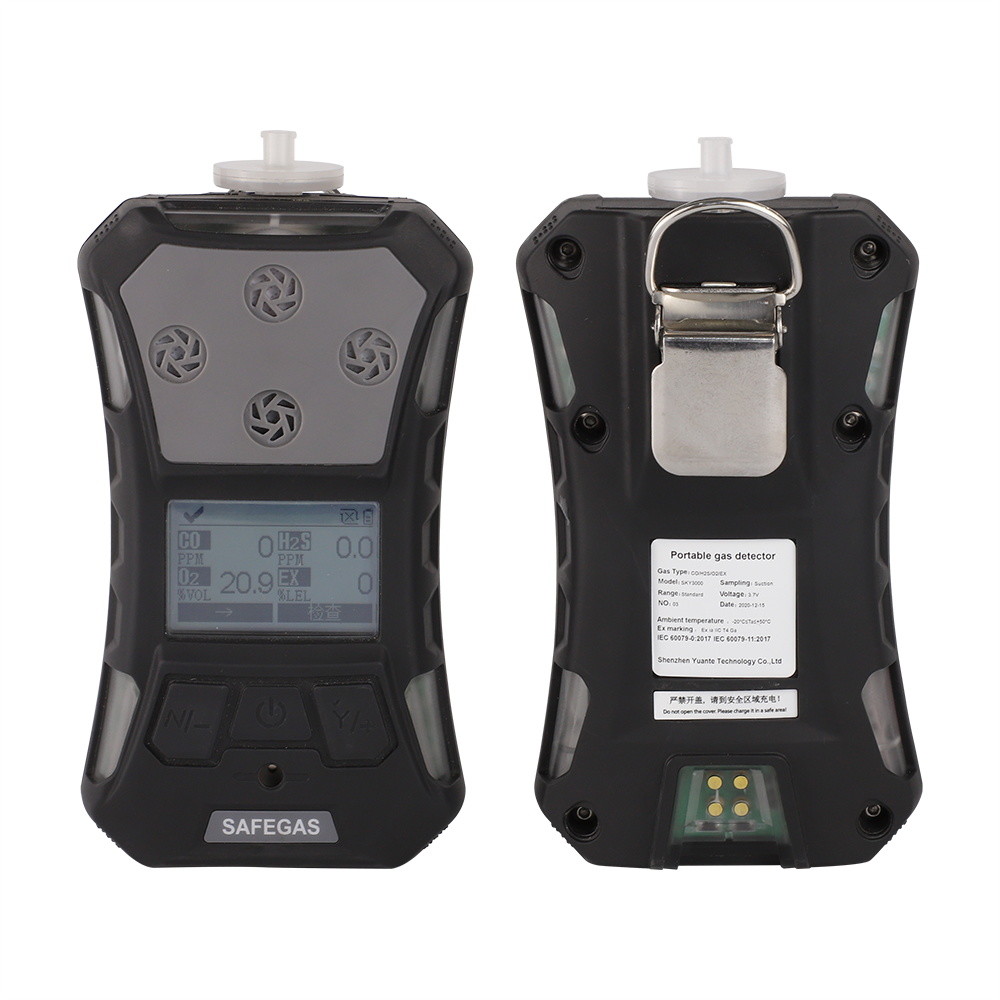

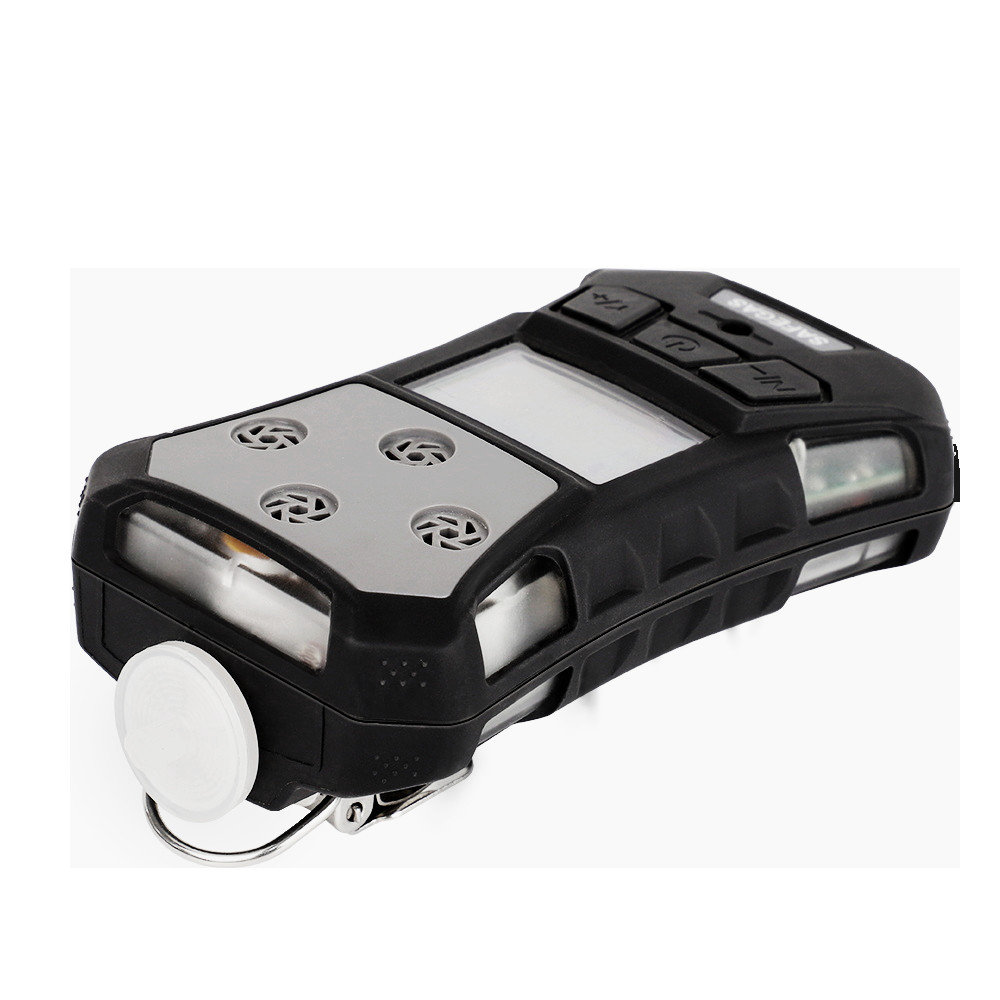

Safety Protection Portable VOC Gas Detector With High Precision PID Sensor
Company profile
YuanTe Technology was founded in 2010, headquartered in Shenzhen. Is a research and development, manufacturing, service in one of the high-tech enterprises. The corporate mission of "identifying all harmful things and protecting the happiness of life" is deeply rooted in our hearts. According to national standards and market demand, we have developed many batches of first-class gas detectors, alarms and other gas equipment.
Specifications
Gas Detected | VOC | ||
Detection principle | PID | ||
Sampling Method | Pumping suction | ||
Measure Range | Customized | ||
Resolution | Customized | ||
Precision | ≤±2%F.S except for special gases | ||
Response Time | ≤30 seconds | Recovery Time | ≤10S |
Repeatability | ≤±1% | Linearity error | ≤±1% |
Zero shift | ≤±1%F.S/year | Display | LCD dot matrix display |
Operating language | Chinese/English | Gas unit | Units are switchable |
Temperature | -20℃-50℃ | Humidity | 0-90%RH |
Explosion-Proof | IECEx: Ex ia IIC T4 Ga ATEX: II 1G Ex ia IIC T4 Ga | Degree of protection | IP67 |
Alarm mode | Sound, light, vibration | Environmental pressure | 86~106Kpa |
Dimensions | 157*84.5*59.5mm | Weight | 365g |
